Electrostatic Oil Purifier

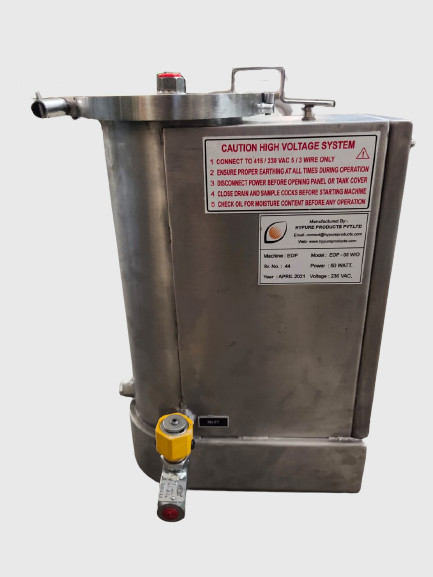

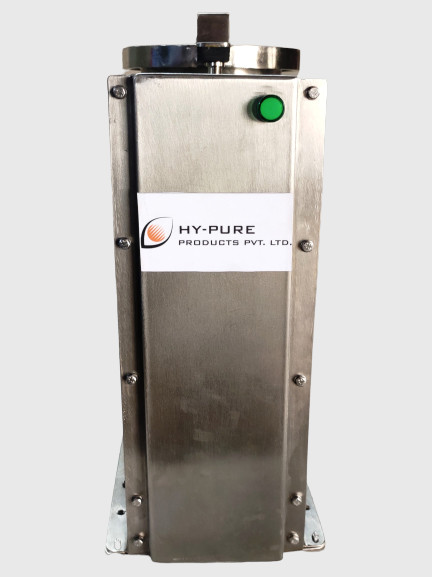

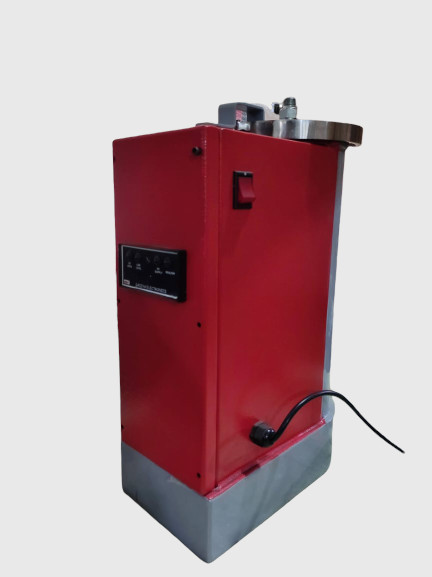

1. EOP-05 Without Pump & Motor
| Sr. No. |
Part |
Description |
| 1 |
High Voltage System |
15KV |
| 2 |
Flow Rate (Approx.) |
1-2 Lpm |
| 3 |
Hose Pipes |
Inlet:3/8” Outlet:3/8” |
| 4 |
Tank |
MS/SS |
| 5 |
Frame |
MS/SS |
| 6 |
Electrodes |
Aluminium |
| 7 |
Collectors |
Cellulose |
| 8 |
Power Supply |
230VAC/50Hz, 110VAC/60Hz, 24V DC |
| 9 |
Dimensions (
approx)
(LengthXWidthXHeight) |
290X200X456 |
| 10 |
Inlet Oil Temperature |
<100°C |
| 11 |
Weight (Approx.) |
14 Kg |
| 12 |
Viscosity |
<220CST |
| 13 |
Water content |
<1000ppm |
2. EOP-10 Without Pump & Motor
| Sr. No. |
Part |
Description |
| 1 |
High Voltage System |
15KV or 20KV |
| 2 |
Flow Rate (Approx.) |
4-5 Lpm |
| 3 |
Hose Pipes |
INLET:3/8” OUTLET:3/8” |
| 4 |
Tank |
MS/SS |
| 5 |
Frame |
MS/SS |
| 6 |
Electrodes |
Aluminum |
| 7 |
Collectors |
Cellulose
|
| 8 |
Power Supply |
230VAC/50Hz, 110VAC/60Hz, 24V DC |
| 9 |
Dimensions (Approx.)
(LengthXWidthXHeight)
|
350X220X460 |
| 10 |
Inlet Oil Temperature |
<100°C |
| 11 |
Weight (Approx.) |
35 Kg |
| 12 |
Viscosity |
<220CST |
| 13 |
Water content |
<1000ppm |

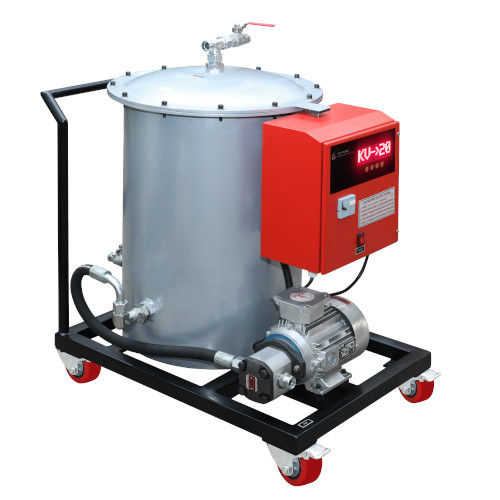

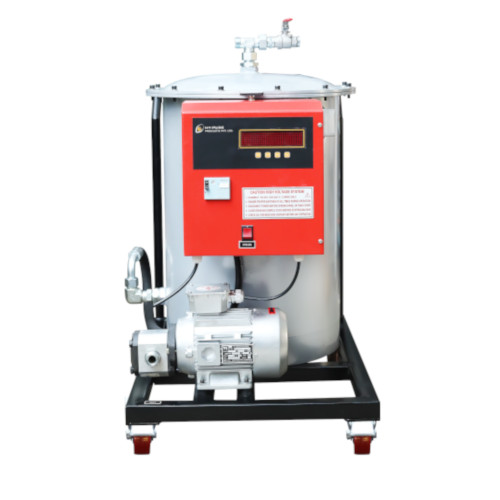

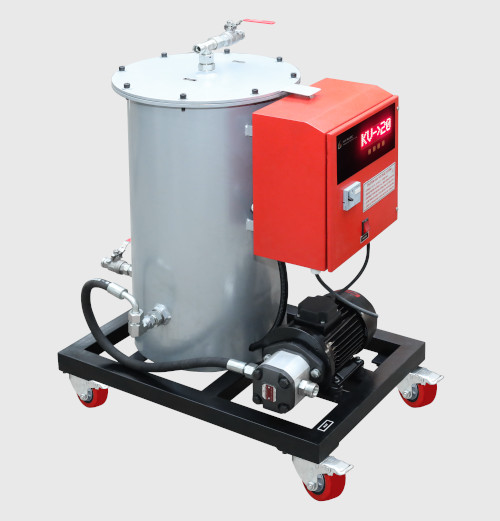

3. EOP-10 With Pump & Motor
| Sr. No. |
Part |
Description |
| 1 |
Gear Pump |
4-5 Lpm |
| 2 |
Electric Motor |
0.25 HP |
| 3 |
High Voltage System |
15KV or 20KV |
| 4 |
Hose Pipes |
INLET:3/8” OUTLET:3/8” |
| 5 |
Tank |
MS/SS |
| 6 |
Frame |
MS/SS |
| 7 |
Electrodes |
Aluminum |
| 8 |
Collectors |
Cellulose
|
| 9 |
Power Supply |
230VAC/415VAC/50Hz, 110VAC/60Hz, 24V DC |
| 10 |
Dimensions (Approx.)
(LengthXWidthXHeight)
|
450X400X685 |
| 11 |
Inlet Oil Temperature |
<100°C |
| 12 |
Weight (Approx.) |
45 Kg |
| 13 |
Viscosity |
<220CST |
| 14 |
Water content |
<1000ppm |
4. EOP-25 Without Pump & Motor
| Sr. No. |
Part |
Description |
| 1 |
High Voltage System |
20KV |
| 2 |
Flow Rate (Approx.) |
6-10 Lpm |
| 3 |
Hose Pipes |
INLET:1/2” OUTLET:1/2” |
| 4 |
Tank |
MS/SS |
| 5 |
Frame |
MS/SS |
| 6 |
Electrodes |
Aluminum |
| 7 |
Collectors |
Cellulose
|
| 8 |
Power Supply |
230VAC/50Hz, 110VAC/60Hz, 24V DC |
| 9 |
Dimensions (Approx.)
(LengthXWidthXHeight)
|
650X450X715 |
| 10 |
Inlet Oil Temperature |
<100°C |
| 11 |
Weight (Approx.) |
55 Kg |
| 12 |
Viscosity |
<220CST |
| 13 |
Water content |
<1000ppm |
5. EOP-25 With Pump & Motor
| Sr. No. |
Part |
Description |
| 1 |
Gear Pump |
6-10 Lpm |
| 2 |
Electric Motor |
0.25 HP |
| 3 |
High Voltage System |
20KV |
| 4 |
Hose Pipes |
INLET:1/2” OUTLET:1/2” |
| 5 |
Tank |
MS/SS |
| 6 |
Frame |
MS/SS |
| 7 |
Electrodes |
Aluminum |
| 8 |
Collectors |
Cellulose
|
| 9 |
Power Supply |
230VAC/415VAC/50Hz, 110VAC/60Hz, 24V DC |
| 10 |
Dimensions (Approx.)
(LengthXWidthXHeight)
|
650X450X810 |
| 11 |
Inlet Oil Temperature |
<100°C |
| 12 |
Weight (Approx.) |
65 Kg |
| 13 |
Viscosity |
<220CST |
| 14 |
Water content |
<1000ppm |
6. EOP-50 Without Pump & Motor
| Sr. No. |
Part |
Description |
| 1 |
High Voltage System |
20KV |
| 2 |
Flow Rate (Approx.) |
12-16 Lpm |
| 3 |
Hose Pipes |
INLET:3/4” OUTLET:3/4” |
| 4 |
Tank |
MS/SS |
| 5 |
Frame |
MS/SS |
| 6 |
Electrodes |
Aluminum |
| 7 |
Collectors |
Cellulose
|
| 8 |
Power Supply |
230VAC/50Hz, 110VAC/60Hz, 24V DC |
| 9 |
Dimensions (Approx.)
(LengthXWidthXHeight)
|
650X450X950 |
| 10 |
Inlet Oil Temperature |
<100°C |
| 11 |
Weight (Approx.) |
70Kg |
| 12 |
Viscosity |
<220CST |
| 13 |
Water content |
<1000ppm |
7. EOP-50 With Pump & Motor
| Sr. No. |
Part |
Description |
| 1 |
Gear Pump |
12-16 Lpm |
| 2 |
Electric Motor |
0.75 HP |
| 3 |
High Voltage System |
20KV |
| 4 |
Hose Pipes |
INLET:3/4” OUTLET:3/4” |
| 5 |
Tank |
MS/SS |
| 6 |
Frame |
MS/SS |
| 7 |
Electrodes |
Aluminum |
| 8 |
Collectors |
Cellulose
|
| 9 |
Power Supply |
230VAC/415VAC/50Hz, 110VAC/60Hz, 24V DC |
| 10 |
Dimensions (Approx.)
(LengthXWidthXHeight)
|
750X450X925 |
| 11 |
Inlet Oil Temperature |
<100°C |
| 12 |
Weight (Approx.) |
85Kg |
| 13 |
Viscosity |
<220CST |
| 14 |
Water content |
<1000ppm |
8. EOP-100 Without Pump & Motor
| Sr. No. |
Part |
Description |
| 1 |
High Voltage System |
20KV |
| 2 |
Flow Rate (Approx.) |
18-20 Lpm |
| 3 |
Hose Pipes |
INLET:3/4” OUTLET:3/4” |
| 4 |
Tank |
MS/SS |
| 5 |
Frame |
MS/SS |
| 6 |
Electrodes |
Aluminum |
| 7 |
Collectors |
Cellulose
|
| 8 |
Power Supply |
230VAC/50Hz, 110VAC/60Hz, 24V DC |
| 9 |
Dimensions (Approx.)
(LengthXWidthXHeight)
|
750X550X995 |
| 10 |
Inlet Oil Temperature |
<100°C |
| 11 |
Weight (Approx.) |
105Kg |
| 12 |
Viscosity |
<220CST |
| 13 |
Water content |
<1000ppm |
9. EOP-100 With Pump & Motor
| Sr. No. |
Part |
Description |
| 1 |
Gear Pump |
18-20 Lpm |
| 2 |
Electric Motor |
1.0 HP |
| 3 |
High Voltage System |
20KV |
| 4 |
Hose Pipes |
INLET:3/4” OUTLET:3/4” |
| 5 |
Tank |
MS/SS |
| 6 |
Frame |
MS/SS |
| 7 |
Electrodes |
Aluminum |
| 8 |
Collectors |
Cellulose
|
| 9 |
Power Supply |
230VAC/415VAC/50Hz, 110VAC/60Hz, 24V DC |
| 10 |
Dimensions (Approx.)
(LengthXWidthXHeight)
|
750X550X995 |
| 11 |
Inlet Oil Temperature |
<100°C |
| 12 |
Weight (Approx.) |
125Kg |
| 13 |
Viscosity |
<220CST |
| 14 |
Water content |
<1000ppm |

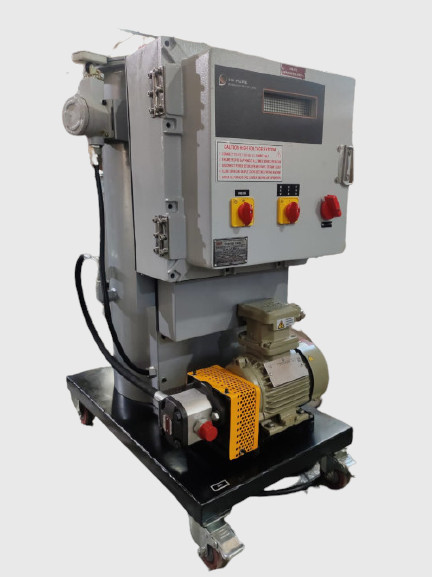

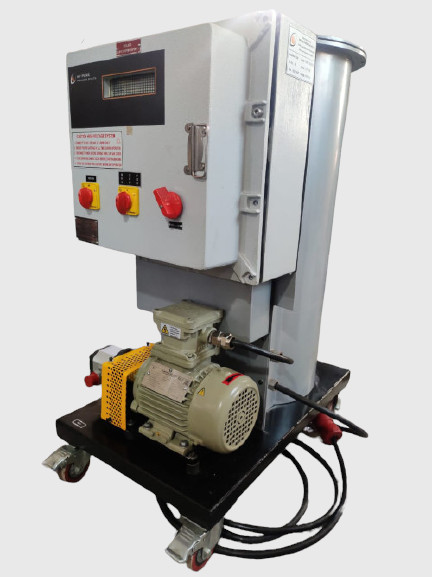

10. EOP With Flameproof Enclosure, Motor and Accessories
With following certificates
1. Certified by CIMFR & PESO, Zone 1 & 2, || B + H2 (|||C).
2. Certified by CIMFR &PESO, Zone | & ||, Gas Group ||A, ||B.
3. Certified by ||2G Ex d, ||B T6 Gb IP66 ATEX
Note: Dimensions and weight of machine will increase as compared to standard models.
11. We can provide 200 liters, 400 liters & 600 liters models too.
